011471 IP66 Analog Horn (Replacement Product is 011590)

011471 IP66 Analog Horn (Replacement Product is 011590)

Part Number: 011471

MSRP: $0.00

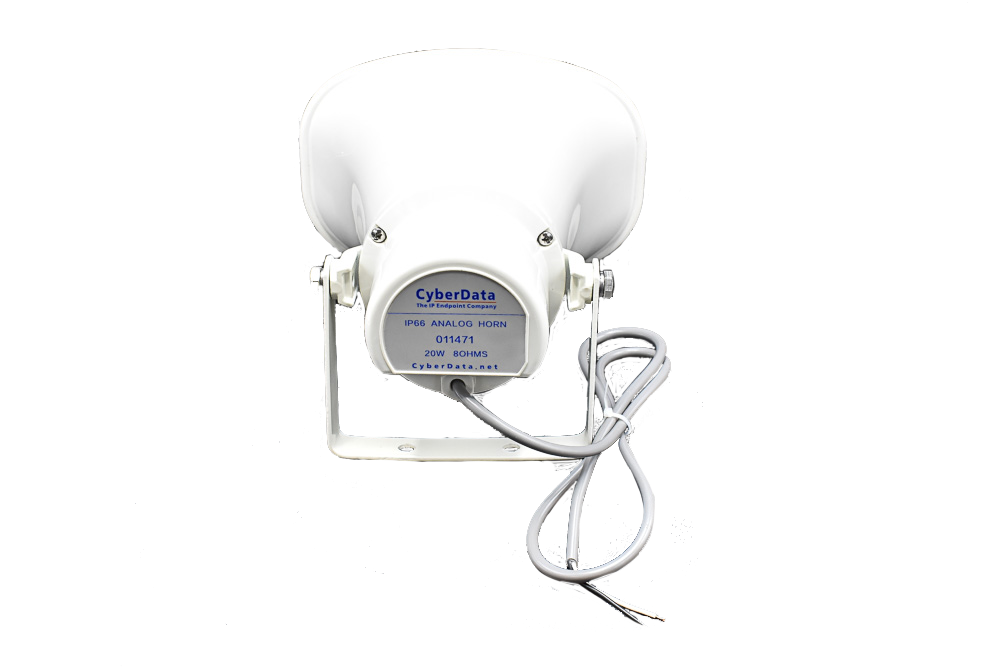

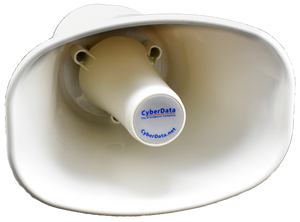

The CyberData IP66 Analog Horn is a heavy duty horn rated for outdoor use, while also being appropriate for warehouses, manufacturing plants, garages and any environment needing loud paging.

The IP66 rating means that is built for harsh outdoor environments including high moisture, dust, oil, and high pressure water jets.

The device is an analog re-entrant horn with a powerful and efficient compression driver designed for good speech intelligibility and a large area of coverage utilizing the supplied AT PoE power.

The IP66 Analog Horn is used with the following CyberData Loudspeaker and Paging Amplifiers:


011324 SIP Paging Amplifier

011403 InformaCast Enabled Paging Amplifier
011411 Syn-Apps enabled Paging Amplifier



011405 SIP Loudspeaker Amplifier-PoE
011407 InformaCast Enabled Loudspeaker Amplifier-PoE
011413 Syn-Apps enabled Loudspeaker Amplifier-PoE




011404 SIP Loudspeaker Amplifier-AC-Powered

011406 InformaCast Enabled Loudspeaker Amplifier-AC-Powered
011412 Syn-Apps enabled Loudspeaker Amplifier-AC-Powered

  • Weather and corrosion resistant design
  • IP66 rating
  • 20 watts continuous duty
  • Designed for good speech intelligibility
  • Adjustable mounting base
  • 3.28 foot (1 meter) connected cable
Input Impedance 8 ohms nominal
Power Handling 20 watts continuous duty
Input Power 20W
Audio Output

802.3at: 117.9 (+/- 0.2) dBC @ 1M and 1 kHz*
802.3af: 115.1 (+/- 0.2) dBC @ 1M and 1 kHz*
*Note: Recorded output levels when tested with one speaker (011471) using a CyberData Paging Amplifier (011324)

Frequency Response 400 - 8000K Hz (-20 dB)
Operating Range Temperature: -40 degrees C to 55 degrees  C (-40 degrees F to 131 degrees  F)
Humidity: 5-95%, non-condensing
IP Rating IP66
Dimensions**
**Note: Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
Length: 8.86 in. [225 mm]
Width: 9.33 in. [237 mm]
Height: 6.38 in. [162 mm] (without stand)
            7.09 in. [180 mm] (including stand)
Weight 2.6 lbs. [1.18 kg]
Boxed Weight 3.0 lbs. [1.36 kg]
Warranty 2 Years Limited
Part Number 011471


Typical Installation


Dimensions

Low Power Mode One Speaker

High Power Mode One Speaker

High Power Mode Two Speakers

Intelligibility Outdoor Field Test

Replacing the Speaker Wire

IP66 Weatherproofing

Suggested Outdoor Installation for Security


Documentation
Description Date
PDF Datasheet DATE: 7/13/18
PDF Quick-Reference Placemat DATE:10/3/23
PDF Intelligibility Outdoor Field Test DATE:6/19/18
